resør x HHV 2525 M

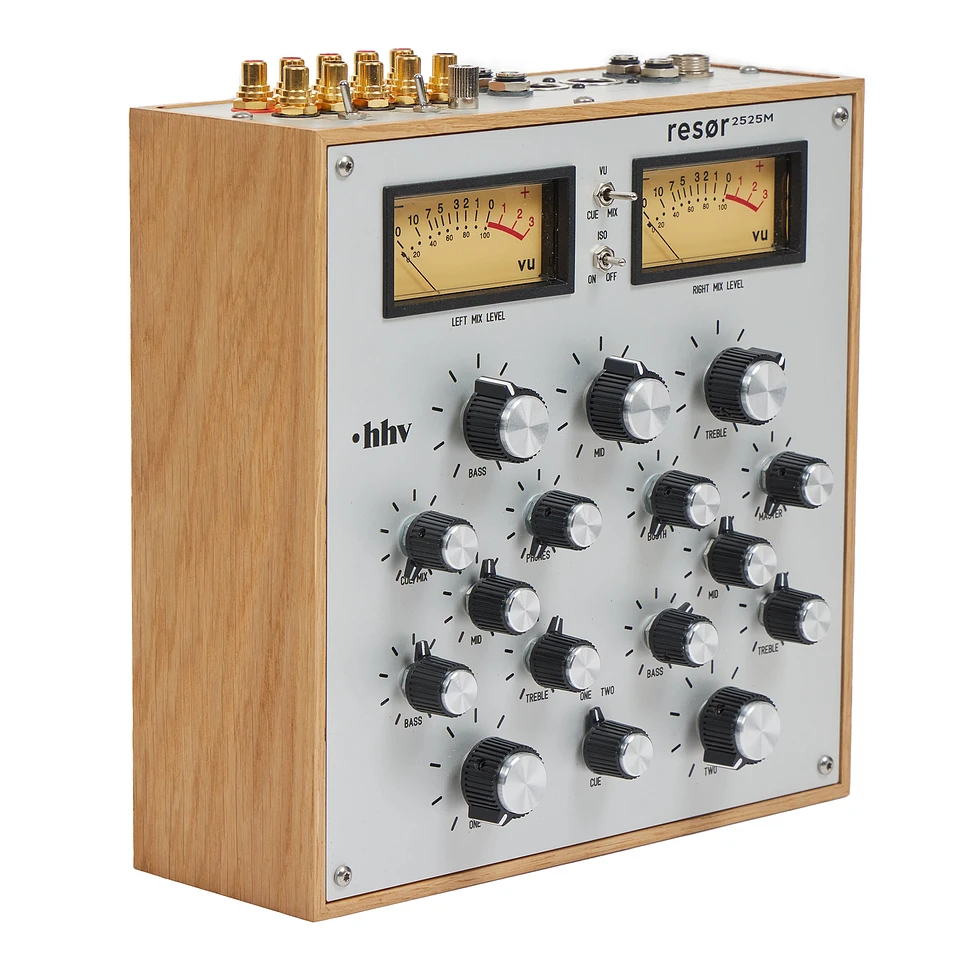

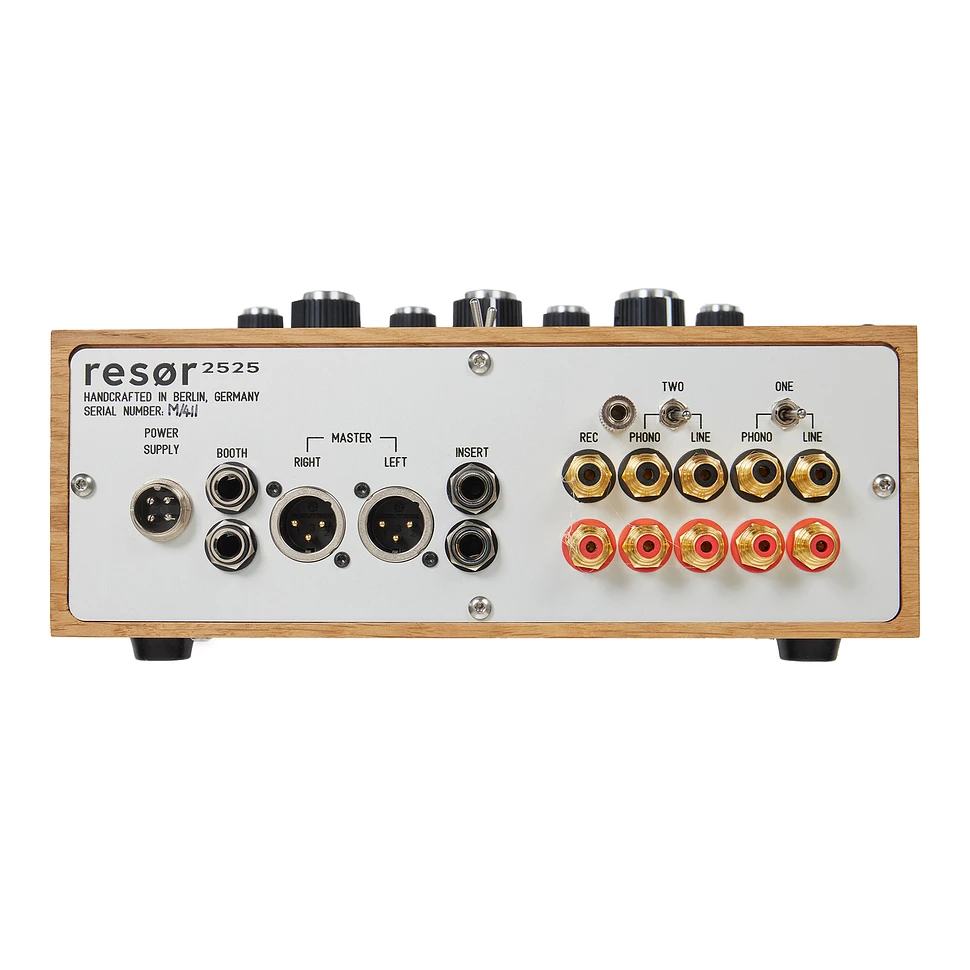

The compact 2525 M enclosure made from natural oak with Silver Moon front panel and Urei knobs feels just as at home in the club as in a dedicated listening room. Inside, fully discrete Class A circuits with custom-developed op-amps deliver extremely linear reproduction and a frequency response from 20 Hz to 20 kHz. The phono inputs with 42 dB of gain, passive RIAA equalization and tight-tolerance polypropylene capacitors extract every detail from your records, while very low distortion and high signal-to-noise ratios provide audiophile headroom. Per channel, the resør x HHV 2525 M offers a 3‑band Baxandall EQ, perfectly tuned for house, techno and everything in between. Bass with ±18 dB at 100 Hz shapes the low end with authority, mids with ±12 dB at 800 Hz clean up your mix, and highs with ±12 dB at 12 kHz either add sparkle or tame harsh peaks. The fully discrete master isolator with 24 dB/octave Linkwitz–Riley filters, crossover at 310 Hz and 3100 Hz and full cut to +12 dB behaves musically and can be cleanly removed from the signal path via true bypass. Two switchable line/phono channels, master output on balanced XLR and RCA, a separate booth output on TRS, plus a record out give you all the connections you need for professional setups. Precise analog VU meters with cue/mix switching, cue/mix blend, a rotary cue switch between Channel One and Channel Two, and a master insert for external processors make the resør x HHV 2525 M a tool that clearly comes from real‑world practice. The external power supply with locking DC cable and 3‑year international warranty underlines that resør x HHV has created a long‑lasting centerpiece for demanding vinyl lovers. resør x HHV 2525 M – features: • resør x HHV 2525 M as a two‑channel analog rotary DJ mixer with 100% discrete Class A signal path • slim wooden enclosure with surrounding front panel in a compact desktop format • two input channels with selectable line or phono source per channel (stereo RCA) • outputs: Master 1 balanced XLR, Master 2 unbalanced RCA, booth balanced TRS, record unbalanced RCA • channel EQ in 3‑band Baxandall design: bass ±18 dB at 100 Hz, mids ±12 dB at 800 Hz, highs ±12 dB at 12 kHz • discrete Class A master isolator with three bands, 24 dB/octave Linkwitz–Riley filters and crossover frequencies at 310 Hz and 3100 Hz • master isolator with full cut and boost up to +12 dB, plus true bypass via audio‑grade relays • master insert as stereo TRS send and return paths (tip left, ring right, sleeve ground) for external effects or processing units • two analog VU meters (1 VRMS = 0 dB) for precise level indication of the left and right master signals • VU meters switchable via selector between cue and mix signal • cue/mix blend potentiometer for adjustable crossfade between cue and master signal • rotary switch for cue selection between Channel One and Channel Two • 100% discrete Class A op‑amps in all line and phono stages for maximum transparency and dynamics • line inputs with 20 Hz to 20 kHz frequency response (±0.3 dB), THD+N < 0.004%, and signal‑to‑noise ratio better than -95 dB from line in to master out • phono inputs with discrete Class A op‑amps, 42 dB gain and passive RIAA equalization with tight‑tolerance polypropylene capacitors • phono specifications: RIAA accuracy ±0.3 dB (20 Hz to 20 kHz), THD+N < 0.02%, signal‑to‑noise ratio better than -77 dB, maximum input voltage before distortion 100 mVRMS • phono input impedance 47 kOhm and input capacitance 47 pF for optimal matching with MM cartridges • master outputs on XLR and RCA with output impedance below 300 ohms • booth output balanced TRS with output impedance below 300 ohms • record output with nominal level -10 dBV and output impedance below 300 ohms for recorders or audio interfaces • crosstalk: channel fader attenuation better than -100 dB, left/right separation better than -70 dB, isolator attenuation better than -90 dB • audiophile Mundorf MCap capacitors in the master isolator for high resolution, fast transients and precise spatial imaging • mica capacitors in the channel EQs for outstanding high‑frequency stability and minimal capacitance drift over time and temperature • external power via separate power supply with locking DC cable at both ends for safe operation • weight: mixer 4 kg, external power supply 1 kg • extensive configuration options for front panels, wooden enclosures and aluminum knobs when ordering • dimensions: 25.0 cm (W) × 25.0 cm (D) × 9.8 cm (H) without knobs, front jack and rear connections • handcrafted in Berlin, Germany
