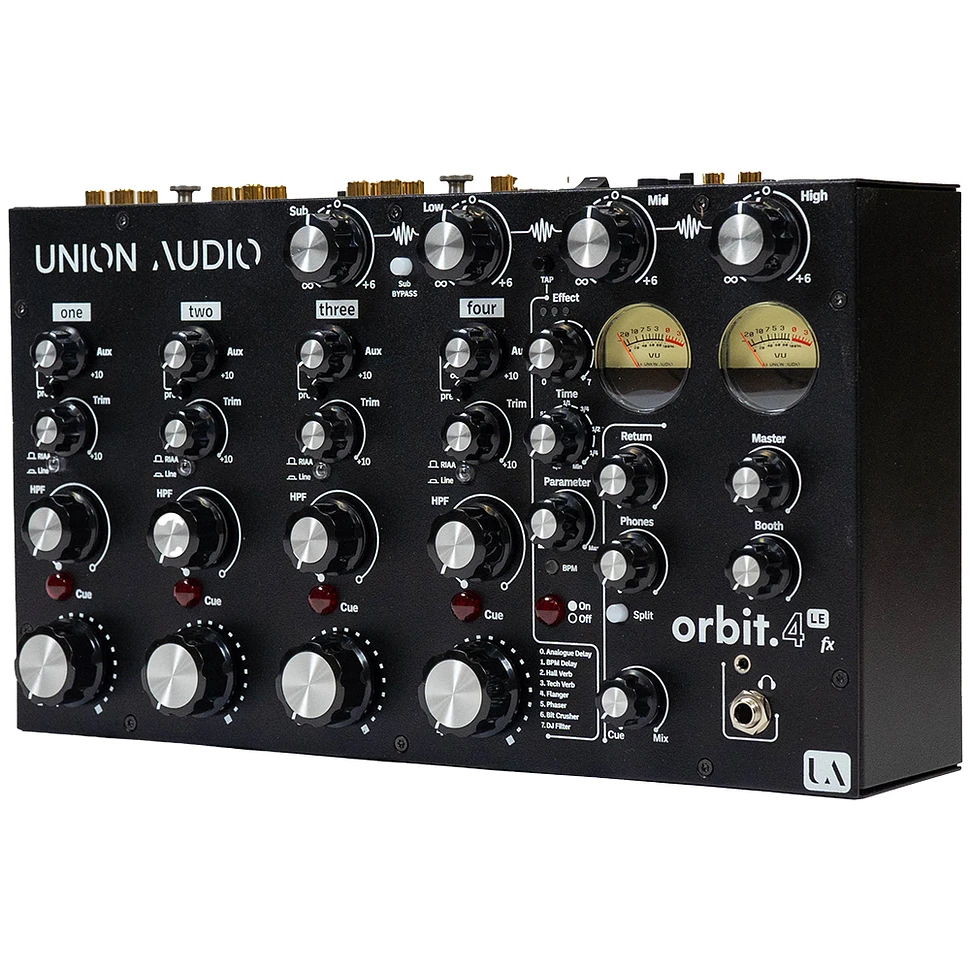

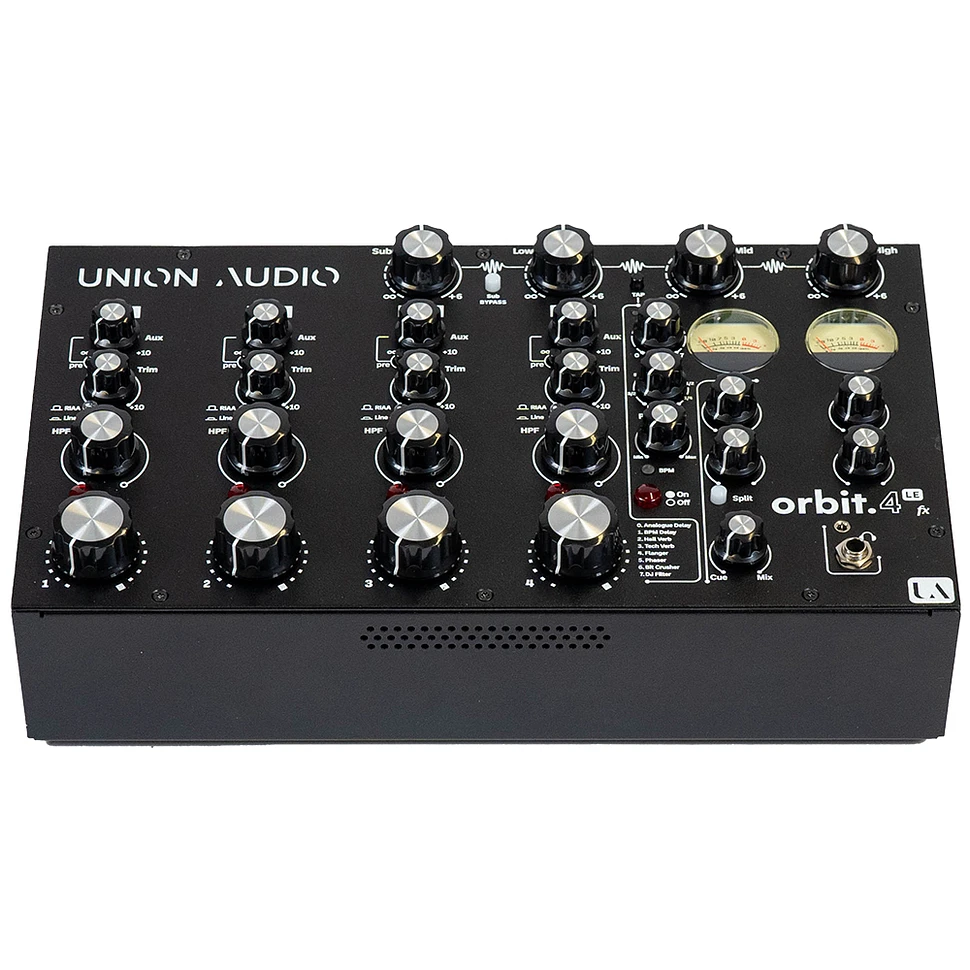

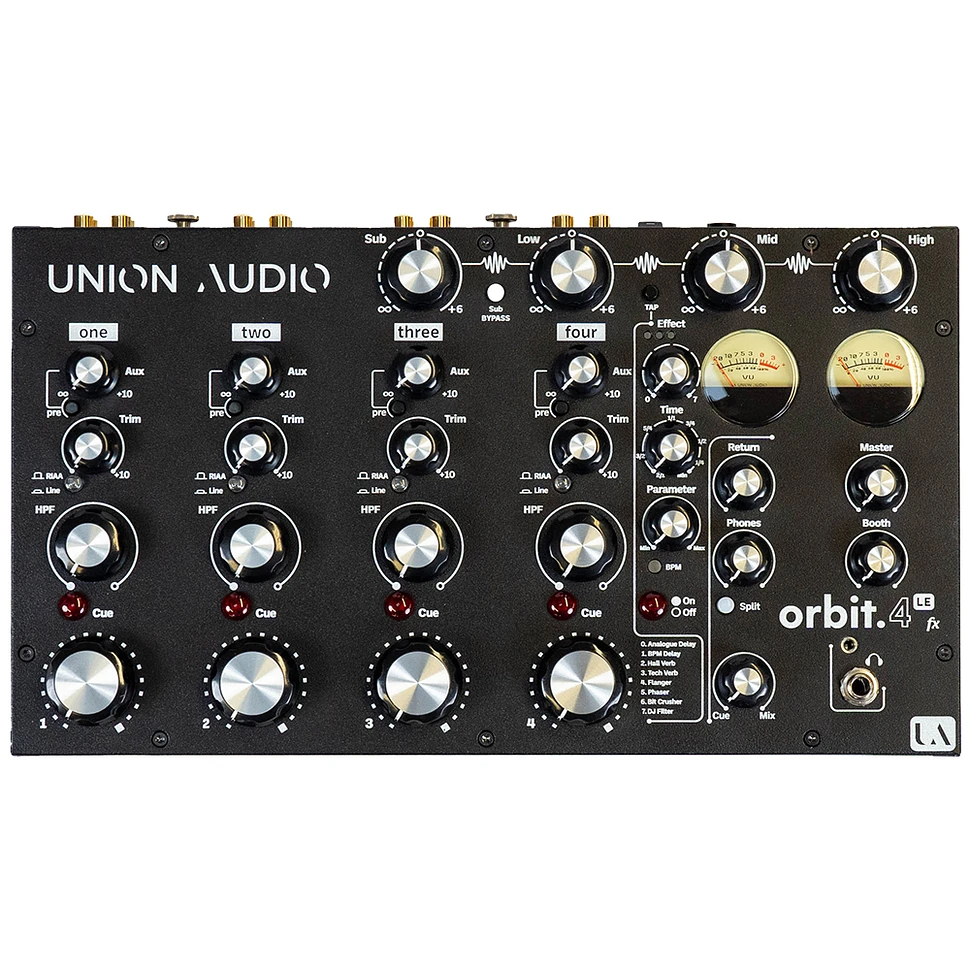

Union Audio ORBIT.4 LE FX 4-Kanal Rotary Desktop Mixer

Features: • 4-channel rotary desktop mixer • 4x phono preamplifiers and 4x line inputs (RCA) • 4-band isolator with adjustable 3-/4-band mode and crossover frequencies at 110 Hz and 3 kHz • High-pass filter with variable Q for precise sound adjustments • Flexible effect activation (latching or momentary) via on/off button per channel • Integrated digital effects section with eight selected effects (delays, reverbs, phaser, flanger, bit crusher, resonant filters) • Delay 2 with automatic BPM detection and tap tempo function • Separate master insert: connection of external effects devices, compressors, or EQs • Dual microphone inputs (balanced, XLR) on the rear panel with on/off switch • Precise Alps rotary knobs (rotary faders) for smooth transitions, excellent feel, and precise mixing • Separate level controls for master out, booth out, and aux return • Two illuminated analog VU meters for reliable signal monitoring • Powerful headphone amplifier with split cue and cue/mix control • Universal headphone connections: 6.3 mm (1/4") and 3.5 mm jack • Master Out, balanced XLR, Booth Out with 6.3 mm jack, stereo RCA for Record Out. • Analog circuitry and components for classic, warm sound • High build quality for reliable use in clubs, studios, or home setups • Made in the UK Technical specifications - Union Audio orbit.4 LE FX Mixer: • Number of channels: 4 (each with phono and line input) • Faders: Alps rotary faders • EQ: 4-band isolator with switchable 3-/4-band mode, crossover at 200 Hz, 800 Hz, and 2000 Hz (cut to +6 dB boost) • Filter: High-pass filter with variable Q, -3 dB at 1500 Hz (fully turned up) • Effect activation: On/Off button (latching or momentary) per channel • FX send with pre/post switching • Master insert: For external effects, compressors, or EQs • Digital effects: 8 (delays, reverbs, phaser, flanger, bit crusher, resonant filters) • Delay 2: With automatic BPM detection & tap tempo function • Internal and external effects can be combined • Dual microphone inputs on/off switch (balanced, XLR) • 4x phono preamplifiers (stereo RCA) • 4x line (stereo RCA) • FX send (6.3 mm jack) • Aux return (6.3 mm jack) • 2x mic in (XLR balanced) • Master out: 2x XLR balanced • Booth out: 2x 6.3 mm jack balanced • Record out: 2x RCA • Aux Return • Headphone output power: 750 mW RMS at 33 ohms • Headphone connections: 6.3 mm and 3.5 mm jack • Headphone functions: Split Cue, Cue/Mix • Separate level controls for Master, Booth, and Aux Return • Two illuminated analog VU meters • THD+N (unweighted, 0 dBu, 20 Hz-20 kHz): 0.005% • Frequency response (Line-In to Mix-Out): ±2 dB from 20 Hz to 100 kHz • RIAA accuracy: ±1 dB from 20 Hz to 20 kHz • Fader attenuation: > -80 dB • L/R channel crosstalk (at 1 kHz): < -75 dB • Residual noise (Mix-Out): < -90 dBu (22 Hz - 22 kHz, unweighted) • Noise Line-In to Mix-Out (Unity Gain): < -85 dBu • Maximum output level (Mix-Out, 0.5% THD): +27 dBu • Dynamic range: 117 dB • Power supply: External switching power supply (SMPSU) • Input voltage: 90-260 VAC • Output: 18 V DC, 30 W • Efficiency: LEVEL VI • Housing: Robust sheet steel housing • Origin: Made in the UK Dimensions & weight: • Mixer: 35.0 x 19.5 x 8.8 cm (including controls, WxHxD) • Mixer weight: 3.75 kg • Shipping dimensions: (L×W×H): 48 x 28 x 20 cm • Shipping weight: 4.75 kg
